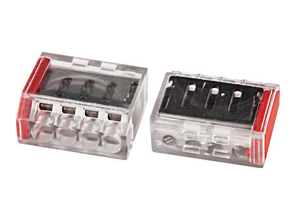

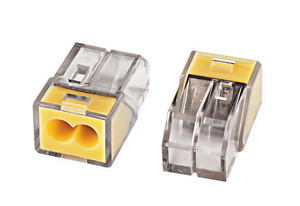

Feature:simply strip the wire and push in transparent housing for visual inspection.Built-in test port.
Feature:simply strip the wire and push in transparent housing for visual inspection.Built-in test port.
|
|
|
| ||||||||||||||||||||
Type | PWC2102 | Type | PWC2104 | Type | PWC2106 | Type | PWC210 8 | ||||||||||||||||
Rated | 400V 24A | Rated | 400V 24A | Rated | 400V 24A | Rated | 400V 24A | ||||||||||||||||
Cross section | 1.5-2.5mm² | Cross section | 1.5-2.5mm² | Cross section | 1.5-2.5mm² | Cross section | 1.5-2.5mm² | ||||||||||||||||
16-12AWG | 16-12AWG | 16-12AWG | 16-12AWG | ||||||||||||||||||||
Wire strip length | 12-13mm | Wire strip length | 12-13mm | Wire strip length | 12-13mm | Wire strip length | 12-13mm | ||||||||||||||||
Poles | 2P | Poles | 4P | Poles | 6P | Poles | 8P | ||||||||||||||||
|
|
|
| ||||||||||||||||||||
Type | PWC2173 | Type | PWC2202 | Type | PWC2203 | Type | PWC2204 | ||||||||||||||||
Rated | 400V 41A | Rated | 400V 24A | Rated | 400V 24A | Rated | 400V 24A | ||||||||||||||||
Cross section | 2.5-6mm² | Cross section | 1.5-2.5mm² | Cross section | 1.5-2.5mm² | Cross section | 1.5-2.5mm² | ||||||||||||||||
14-10AWG | 16-12AWG | 16-12AWG | 16-12AWG | ||||||||||||||||||||
Wire strip length | 12-13mm | Wire strip length | 12-13mm | Wire strip length | 12-13mm | Wire strip length | 12-13mm | ||||||||||||||||
Poles | 3P | Poles | 2P | Poles | 3P | Poles | 4P | ||||||||||||||||
|
|
| |||||||||||||||||||||
Type | PWC2205 | Type | PWC2174 | Type | PWC1101 | ||||||||||||||||||
Rated | 400V 24A | Rated | 400V 24A | Rated | 400V 24A | ||||||||||||||||||
Cross section | 1.5-2.5mm² | Cross section | 1.5-2.5mm² | Cross section | 0.5-2.5mm² | ||||||||||||||||||
16-12AWG | 16-12AWG | 20-16AWG | |||||||||||||||||||||
Wire strip length | 12-13mm | Wire strip length | 12-13mm | Wire strip length | 9-11mm | ||||||||||||||||||
Poles | 5P | Poles | 4P | Poles | 1P | ||||||||||||||||||
|
|
| |||||||||||||||||||||
Type | PWC3402 | Type | PWC3403 | Type | PWC3405 | ||||||||||||||||||
Rated | 400V 32A | Rated | 400V 32A | Rated | 400V 32A | ||||||||||||||||||
Cross section | 0.08-4mm² | Cross section | 0.08-4mm² | Cross section | 0.08-4mm² | ||||||||||||||||||
28-12AWG | 28-12AWG | 28-12AWG | |||||||||||||||||||||
Wire strip length | 9-10mm | Wire strip length | 9-10mm | Wire strip length | 9-10mm | ||||||||||||||||||
Poles | 2P | Poles | 3P | Poles | 5P | ||||||||||||||||||
 |  |  |  | ||||
Type | PWC422 | Type | PWC623 | Type | PWC633 | Type | PWC933 |
| Description | 2 in 4 out | Description | 2 in 6 out | Description | 3 in 6 out | Description | 3 in 9 out |
| Rated | 400V 32A | Rated | 400V 32A | Rated | 400V 32A | Rated | 400V 32A |
| Cross section | 0.08-4.0mm2 | Cross section | 0.08-4.0mm2 | Cross section | 0.08-4.0mm2 | Cross section | 0.08-4.0mm2 |
| Wire strip length | 12mm | Wire strip length | 12mm | Wire strip length | 12mm | Wire strip length | 12mm |
 |  |  | |||
Type | PWC211-415 | Type | PWC211-413 | Type | PWC211-415 |
| Description | 5 pole | Description | 3 pole | Description | 5 pole |
| Rated | 400V 32A | Rated | 400V 32A | Rated | 400V 32A |
| Cross section | 0.12-4.0mm2 | Cross section | 0.12-4.0mm2 | Cross section | 0.12-4.0mm2 |
| Wire strip length | 12mm | Wire strip length | 12mm | Wire strip length | 12mm |
 |  | ||
Type | PWC202 | Type | PWC303 |
| Description | 2 in 4 out | Description | 3 in 3 out |
| Rated | 250V 5A | Rated | 250V 5A |
| Cross section | 0.5-2.5mm2 | Cross section | 0.5-2.5mm2 |
| Wire strip length | 12mm | Wire strip length | 12mm |
 |  | ||
Type | PWC3422 | Type | PWC3433 |
| Description | 2 in 2 out | Description | 3 in 3 out |
| Rated | 400V 32A | Rated | 400V 32A |
| Cross section | 0.08-4.0mm2 | Cross section | 0.08-4.0mm2 |
| Wire strip length | 12mm | Wire strip length | 12mm |
